Connex Earthing And Current Testing Connector S4

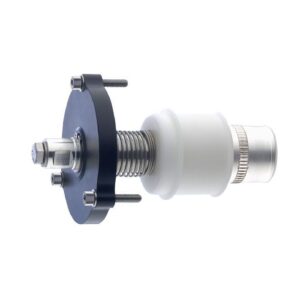

This Connex Earthing And Current Testing Connector S4 is designed to facilitate current testing on switchgears, transformers, transducers, and similar equipment. It is equipped with CONNEX bushings, ensuring compatibility with standardised systems. For securing electrical and mechanical connections, the connector is inserted into a CONNEX bushing of matching size and bolted for stability and reliability.

Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.

• Compatible with CONNEX bushings for seamless integration.
• Designed with robust materials suitable for indoor, outdoor, and offshore environments.
• Precision-engineered to meet stringent electrical performance requirements.

Size: 4

Applicable Standards: IEC 60840, IEC 60137

Working Environment: Indoor, outdoor, and offshore

Environmental Temperature Range (°C): -25°C to 50°C

Highest Voltage Um (kV): 72.5

Nominal Voltage Un (kV): 60 – 69

Rated Design Voltage to Ground U0 (kV): 36

AC Withstand Voltage (1 min): 155 kV

Lightning Impulse Withstand Voltage: 325 kV

Partial Discharge Test:

< 5 pC at 63 kV

< 2 pC at 160 kV

AC Withstand Voltage (10 min): 160 kV

• Provides a reliable solution for current testing across various electrical components.
• Operates within a wide environmental temperature range, ensuring versatility in application.
• Complies with internationally recognised standards, offering reassurance of compatibility and safety.
• High voltage and lightning impulse withstand capabilities make it suitable for demanding power systems.

This connector is ideal for use in the testing and maintenance of switchgears, transformers, and transducers. Its versatile design makes it appropriate for applications in power systems, industrial facilities, and offshore platforms. It is particularly useful in situations requiring high voltage performance and adherence to strict testing standards.
