B2 Digi-Bridge

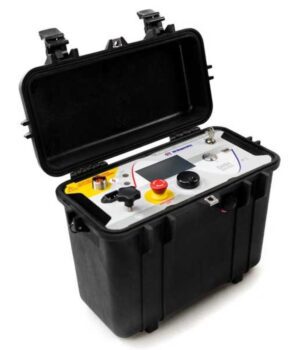

The B2 Digi-Bridge is a fully automatic and highly accurate high-voltage cable insulation and jacket/sheath testing and fault location instrument. Designed for rugged environments, it is housed in a durable IP65-rated pelican-type injection molded case. This one-piece, fully integrated device excels at testing both cable insulation quality and cable sheath integrity. Its standout feature, however, is its ability to precisely pre-locate faults using the proven bridge fault location method. The Digi-Bridge is an indispensable tool for identifying failures in cable insulation or jacket-sheaths with precision and efficiency.

Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.

• Fully integrated, one-piece design for streamlined operation.
• Proven bridge fault location methods (Murray & Glaser Bridge).
• Adjustable output voltage ranging from 0 to 12 kV DC for versatile testing.
• Lightweight and compact design, weighing only 28 lbs (12.8 kg) for easier transport.
• Rugged case with IP65 rating, ensuring protection against dust and low-pressure water jets.

Output Voltage (Adjustable): 0 – 12 kV DC

Voltage Indication: ±1% ± 100 V

Output Current (at all voltages): 0 – 10.5 mA

Current Indication: ±1% ± 10 µA

Insulation Resistance: 0.1 MΩ – 1 GΩ

Accuracy (Bridge Fault Location): ±0.1%

Bridge Methods: Murray & Glaser Bridge

Current: 0 – 10.5 mA

Fault Pinpointing Mode (Pulsed): 0.2 kV – 12 kV

Max. Discharge Capacity: 30 µF

LCD Display: Sunlight-visible color, 480 x 272

Power Supply: AC 85-264 V / 50-60 Hz (150 VA)

Battery (Optional): Li-ion, >10 hours in HV Mode

Weight: 28 lbs / 12.8 kg

Dimensions:

Imperial (in): 16.40 x 8.71 x 13.15

Metric (cm): 41.7 x 22.1 x 33.4

Environmental:

Storage: -40°F to 140°F / -40°C to 60°C

Operating: -4°F to 122°F / -20°C to 50°C

Relative Humidity: Non-condensing

• Precision Testing: Delivers exact fault pre-location with accuracy of ±0.1%, saving time and effort in fault detection.
• Durable Design: IP65-rated housing ensures reliable operation in challenging environments.
• User-Friendly Interface: Sunlight-visible colour LCD display for clear readings in all lighting conditions.
• Flexible Power Options: Operates on AC power or optional long-lasting Li-ion battery, offering extended portability.
• Efficient Fault Pinpointing: Incorporates advanced fault pinpointing mode to locate failures quickly and effectively.

The B2 Digi-Bridge is specially designed for professionals in the power and energy sector to meet a variety of project requirements, including:

• Cable Insulation Testing: Verify the quality and integrity of cable insulation.
• Sheath Testing: Ensure jacket/sheath durability and locate potential weaknesses.
• Fault Pre-Location: Locate precise fault points in cables using the bridge fault technique.
• Maintenance Checks: Conduct routine inspections to ensure system reliability.
• Project Deployments: Support critical infrastructure projects with accurate and efficient testing solutions.
