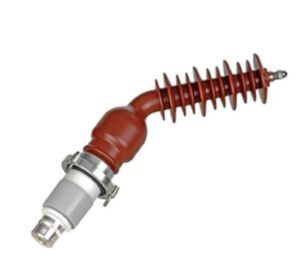

Pfisterer HV Test Plug (Size 2)
Pfisterer HV Test Plug (Size 2): High Voltage Test plugs ideal for hipot testing
Daily rates
Cost per day
$125
$112.50
$93.75
$78.75
Duration (days)
1-7
8-14
15-28
29-90
Typical Hire Periods
Cost
$875
$1,575
$2,362.50
$4,725
Duration
week
fortnight
1 month
2 month
All prices are ex-GST
Description
The Pfisterer HV Test Plug (Size 2) inner cone plug separable connectors are suitable for terminating high-voltage single-core cables with copper wire screens. Pfisterer HV cable plugs are ideal for indoor and outdoor cable terminations with or without voltage taps.
To fulfill multiple usage requirements, the component is designed with 45° angle. They are used as transitional connecting parts when transformers that are equipped with CONNEX-bushings are connected to blank (overhead) lines. They are used as CONNEX test connecting parts for electrical testing of equipment that is equipped with CONNEX bushings.
Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.
Specification
Technical Data Article no. 827 186 212 Size 2
Max. system voltage Um (kV) 42
Rated lightning impulse withstand voltage (BIL) (kV) 200
Rated power frequency withstand voltage 1 min (kV) 95
Nominal current IN (A) 800
DC voltage test 15 min 6 x U0 (kV) 125 Thread G M12.
Resources & Downloads
Manuals
Data Sheet
