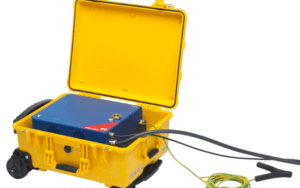

OMICRON CP CR600 Compensating Reactor

Name: OMICRON CP CR600 Compensating Reactor
SKU: CP CR600
Availability: InStock

The OMICRON CP CR600 Compensating Reactor is used together with the CPC 100 multifunctional primary testing system and the CP TD12/15 for testing the insulation quality of rotating machines, cables and other assets with high capacitances.

Manufacturer

OMICRON Electronics

Model number

CP CR600

Shipping details

Yellow Box 29kg 70L 46W 35H

Committing to 3, 6 or 12 months?
Call us on 1300 024 473 for fantastic long term hire rates.

Description

The OMICRON CP CR600 Compensating Reactor is a reliable and efficient testing solution for assessing the insulation quality of generators, motors, and other electrical systems with high capacitances up to 1 μF at rated frequency. When combined with the CPC 100 and CP TD12/15, the system enables advanced testing capabilities such as dissipation factor (tan delta) and power factor measurements.

Furthermore, it can be utilised as a high-voltage source for partial discharge measurements and voltage withstand tests on rotating machines.

Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.

Key Features

Maximum test voltage of 15 kV
Easy to transport due to its modular and lightweight concept (48 kg / 106 lbs)
Convenient and flexible test setup, ideal for test objects with limited access
Low noise level, ideal for partial discharge measurements
Several units can be connected in parallel

Specification

Operating temperature range: 0 °C … +35 °C

Nominal temperature range: 18 °C … +28 °C

Storage temperature range: -30 °C … +60 °C

Weight: 54kg

Benefits

Enhanced Insulation Testing: Accurately assess insulation integrity in high-capacitance systems.
Improved Diagnostic Capabilities: Conduct precise dissipation factor and power factor measurements.
Reliable Issue Detection: Identify potential issues through partial discharge assessment.
Comprehensive Analysis: Gain detailed insights into electrical system performance with versatile parameter measurements.
Wide Industry Application: Suitable for a variety of industries, including maintenance, renewable energy, and telecommunications.

Applications

With CPC 100 + CP TD15 + CP CR600 you can measure the following electrical parameters:

Capacitance and power/dissipation factor
Voltage withstand
DC winding resistance
Contact resistance
Impedance
Operation: From from of CPC 100 or PTM software

What’s more, the Omicron CP CR600 Compensating Reactor can also be used for:

Insulation quality testing — Assess insulation integrity in generators, motors and high-capacitance systems to ensure operational safety and reliability.
Dissipation factor measurement — Perform precise dissipation factor (tan delta) and power factor measurements using the CP CR600 in conjunction with CPC 100 + CP TD12/15, essential for evaluating electrical component efficiency.
Partial discharge assessment — Utilise the CP CR600 as a high-voltage source for partial discharge measurements and voltage withstand tests on rotating machines, crucial for detecting potential issues and ensuring equipment longevity.
Comprehensive electrical parameter analysis — Measure capacitance, voltage withstand, DC winding resistance, contact resistance and impedance to gain comprehensive insights into electrical system performance and health.
Versatile industry applications — Suitable for diverse industries including construction, manufacturing, maintenance, renewable energy and telecommunications, the CP CR600 offers flexible and reliable testing solutions for various electrical systems and components.

FAQs

Why choose OMICRON CP CR600 Compensating Reactor?

Choosing the OMICRON CP CR600 Compensating Reactor ensures accurate and reliable testing of insulation quality, dissipation factor and power factor in electrical systems. Its versatility extends to partial discharge measurements and voltage withstand tests, making it an indispensable tool for industries like construction, manufacturing and telecommunications. With its user-friendly design and robust functionality, the CP CR600 simplifies testing procedures, ensuring efficient and precise results.
