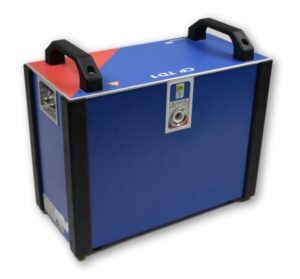

OMICRON CP-TD1

The OMICRON CP-TD1 is a high-precision, compact test system designed for on-site insulation testing of high-voltage systems. It is suitable for applications involving power transformers, instrument transformers, circuit breakers, capacitors, and isolators. Additionally, it serves as a reliable high-voltage source for partial discharge measurements. Compatible with the CPC 100, the CP TD1 enables tan delta, dissipation factor, and capacitance measurements using advanced frequency sweep methods for improved sensitivity, early defect detection, and accurate insulation quality assessment.

Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.

• All-in-One Design: Compact and rugged build for versatile testing applications
• Advanced Frequency Range: Frequency range from 15 Hz to 400 Hz for higher sensitivity
• High-Voltage Capability: Output voltages up to 12 kV and currents up to 300 mA
• Precision Measurements: Capable of dissipation factor and capacitance testing at laboratory precision
• Interference Suppression: Effectively mitigates mains frequency interference fields
• Portable Solution: Convenient transport with a trolley and lightweight components

• Voltage Output: 0 to 12 kV AC
• Output Frequency: 15-400 Hz with a resolution of 0.01 Hz
• Operating Temperature/Humidity: -10°C to 55°C, 5%-95% RH (no condensation)
• Dimensions (CP TD1 and Case): 700 x 500 x 420 mm; Weight: 38.1 kg
• Dimensions (Cables, Accessories and Case): 680 x 450 x 420 mm; Weight: 26.6 kg

• Early detection of insulation defects to prevent costly equipment failures
• Laboratory-grade precision in measurements, even in challenging environments
• Compact and transportable design for flexibility and ease of use
• Wide-ranging frequencies to adapt to various use cases and achieve detailed assessments
• Increased system reliability and safety through regular diagnostic testing

• Power transformers — The CP TD1 plays a vital role in ensuring the reliability and safety of power transformers. It conducts comprehensive insulation tests, helping to detect potential defects and deterioration early. This early detection is crucial in preventing costly failures and maintaining efficient energy transmission.
• Rotating machines — For rotating machines, the CP TD1 is indispensable. It accurately assesses insulation quality, which is crucial for the longevity and efficiency of these machines. Regular testing with the CP TD1 can prevent unexpected downtime and extend the life of the equipment.
• Current transformers — The CP TD1 is essential in evaluating the insulation integrity of current transformers. It guarantees that these transformers function reliably under high voltage conditions, which is critical for the safety and efficiency of electrical systems.
• Voltage transformers — By identifying potential insulation issues early, the CP TD1 helps maintain voltage transformers’ operational integrity and reliability, which are crucial for stable electrical distribution.
• High-voltage (HV) cables — In the case of HV cables, the CP TD1 helps assess their insulation condition. This is vital for preventing power outages and ensuring the safety of the electrical network. Regular testing can detect insulation weaknesses before they lead to failures.
• Gas-insulated switchgear (GIS) systems — For GIS systems, the CP TD1 offers precise testing capabilities. It helps maintain the reliability and safety of these systems by detecting insulation defects, which are crucial for the uninterrupted operation of power grids.
