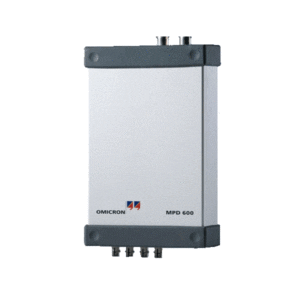

OMICRON MPD 600

The Omicron MPD 600 is an advanced partial discharge (PD) measurement and analysis system. It can be used for many different PD testing applications on electrical equipment. The modular system enables both single- and multi-channel PD measurements in test labs and the field. All measurement signals are recorded, analysed and displayed at the same time. Advanced noise suppression and source separation techniques ensure that only PD pulses from the test object are analysed.

Need dependable equipment for your next project? Hire now to enjoy fast delivery, flexible rental options, and expert support every step of the way. Get the right products when you need them. Secure your rental today on 1300 024 473.

• Advanced noise suppression and PD source separation.
• Modular design for single- and multi-channel measurements.
• Wide operating temperature range (-10 °C to +50 °C).
• Lightweight design (7kg without accessories) for enhanced portability.
• Long-lasting lithium-ion batteries for extended field operations.

Operation: Central rotary switch and function keys Working temperature range: -10 °C … +50 °C
Operating temperature range: 0 °C … +35 °C
Nominal temperature range: 18 °C … +28 °C
Storage temperature range: -30 °C … +60 °C
Battery: Lithium-ion batteries
Weight: 7kg without accessories

• Enhanced reliability with unmatched immunity to interference during PD measurements.
• Fully digital data processing ensures exceptional measurement accuracy.
• User safety is prioritised with fibre optic cables ensuring complete galvanic isolation.
• Easy recording and playback functionality with full control over measurements.
• Compliant with IEC 60270 standards, verified by an independent testing institute.

• Transformer testing — The Omicron MPD 600 is essential for detecting insulation flaws and degradation early in an electrical system. Its advanced capabilities allow for a comprehensive analysis of transformer health, which is crucial for maintaining power grid reliability. Regular transformer testing via the MPD 600 can help reduce the risk of unexpected failures, ensuring uninterrupted power and long-term asset preservation.
• On-site testing and cable fault localisation — This device is highly effective for identifying and localising faults in underground cables. Its precision in detecting and analysing partial discharge patterns can help pinpoint the exact locations of faults. This saves time and resources in repair and maintenance, and minimises the risk of catastrophic failures.
• Gas-insulated switchgear (GIS) — In the context of GIS, the Omicron MPD 600 is critical in guaranteeing the system’s integrity and operational safety. Detecting partial discharges provides vital insights into the condition of the insulation, thereby helping prevent possible malfunctions or breakdowns.
• Measurements on rotating machines — The device is indispensable for maintaining and testing motors and generators. It enables detailed analysis of insulation systems, helping predict and prevent potential failures. This is particularly crucial in industries where rotating machines play a pivotal role.
• Lab measurements on medium- and high-voltage components — In a laboratory environment, the Omicron MPD 600 is crucial for testing and researching medium- and high-voltage components. Its precise measurementshelp evaluateg the performance and durability of these component,senabling the development ofp more robust and reliable electrical systems.
